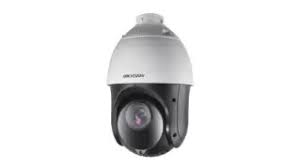

Clear imaging against strong back lighting due to DWDR technology
Excellent low-light performance via powered-by-DarkFighter technology
Pan and tilt ability enables camera to monitor zones of interest
15x optical zoom allows for closer viewing of subjects in expansive areas
Water and dust resistant (IP66)
H.265+/H.265 video compression, 5- 75mm LENS,
Upto 100m IR, optical zoom 15x, digital zoom 16x,
Color 0.02lux/F1.5, DWDR, 3D DNR, IP66,
2688×1520/25fps(P)/30fps(N)
Camera Module
Image Sensor1/2.8" progressive scan CMOS
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001Lux @(F1.6, AGC ON),0 Lux with IR
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
GainAuto/Manual
Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
Day & NightIR Cut Filter
Digital Zoom16×
Privacy Mask24 programmable privacy masks
Focus ModeAuto/Semi-automatic/Manual
WDR120 dB WDR
Supplement Light
IR Distance100 m
Smart IRSupport
PTZ
Movement Range (Pan)360° endless
Pan SpeedConfigurable, from 0.1°/s to 80°/s, ,Preset speed: 80°/s
Movement Range (Tilt)From -15° to 90° (auto-flip)
Tilt SpeedConfigurable, from 0.1°/s to 80°/s,Preset Speed: 80°/s
Proportional ZoomSupport
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off MemorySupport
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
ROIMain stream, sub-stream, and third stream respectively support four fixed areas.
Lens
FOVHorizontal field of view: 53.8° to 4° (Wide-Tele),Vertical field of view: 31.9° to 2.3° (Wide-Tele),Diagonal field of view: 60.4° to 4.6° (Wide-Tele)
