DS-2CD2347G2-L(U) 4 MP ColorVu Fixed Turret Network Camera

DS-2CD2347G2-L(U) 4 MP ColorVu Fixed Turret Network Camera - Image 2

DS-2CD2347G2-L(U) 4 MP ColorVu Fixed Turret Network Camera

Name: DS-2CD2347G2-L(U) 4 MP ColorVu Fixed Turret Network Camera
SKU: 5303
Availability: InStock

Model: DS-2CD2347G2-LU (4MP ColorVu)

~~₨17,500.00~~ ₨17,115.00

Add to wishlist Compare

Order on WhatsApp

Other people want this. 5 people have this in their carts right now.

Categories: ALL TECH ACCESSORIES, Camera & Securities, ColorVu Network Cameras Tags: 24/7 colorful imaging, Built-in microphone, Face capture, Scene change detection

24/7 colorful imaging
Water and dust resistant (IP67)
Efficient H.265+ compression technology

Reviews

There are no reviews yet.

Be the first to review “DS-2CD2347G2-L(U) 4 MP ColorVu Fixed Turret Network Camera”

Description

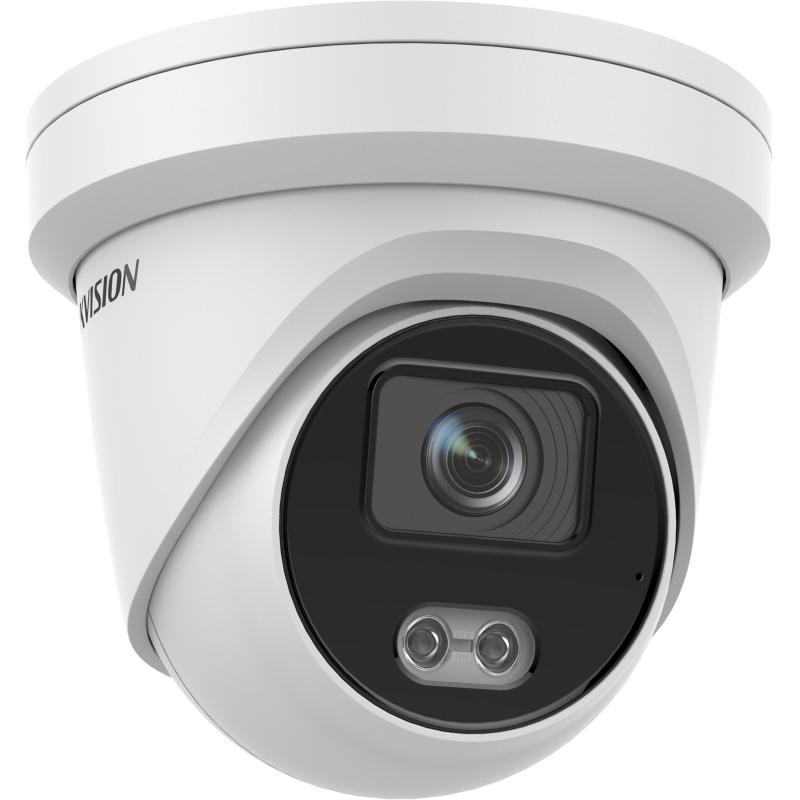

DS-2CD2347G2-L(U) – 4MP ColorVu Fixed Turret Network Camera

The DS-2CD2347G2-L(U) is a high-quality 4MP ColorVu fixed turret network camera designed by Hikvision. Offering exceptional color imaging day and night, this camera uses advanced technologies like H.265+ compression and 130 dB WDR for unparalleled clarity. With its robust features, it ensures continuous, high-definition surveillance for both residential and commercial environments.

Key Features:

Resolution: 4MP with ColorVu technology for vivid color imaging, even in extremely low light
Advanced Compression: H.265+ compression technology ensures efficient video storage and bandwidth usage
Backlight Compensation: 130 dB Wide Dynamic Range (WDR) technology to eliminate strong backlight issues and maintain clear images
Audio Security: Built-in microphone for real-time audio surveillance (-U version)
AI Analytics: Deep learning-based human and vehicle target classification for intelligent event detection
Night Vision: 24/7 full-color imaging, with 0.0005 Lux low-light performance and white light for complete night-time surveillance
Weatherproof: IP67-rated water and dust resistance for reliable outdoor performance
Image Sensor: 1/1.8″ Progressive Scan CMOS sensor for sharp, high-quality images
AI-Based Detection: Uses deep learning algorithms to accurately classify human and vehicle targets, reducing false alarms and enhancing monitoring precision.
Smart Alerts: Receive instant notifications on detected events such as motion or scene changes, ensuring timely responses.
Flexible Installation: Supports wall or ceiling mounting with adjustable angles for optimal camera positioning and coverage in various environments.

Additional Features:

Bitrate: 32 Kbps to 8 Mbps adjustable video bit rate for flexible bandwidth management
Enhanced Security: Scene change detection, face capture capabilities, and real-time alerts for enhanced surveillance
Design: Compact turret design for discrete and flexible mounting options in various settings
Wide Coverage: Wide field of view with minimal distortion, ensuring efficient monitoring of large areas
Integration: Seamless integration with Hikvision’s smart devices and third-party systems for a complete surveillance solution

Call to Action: For more details and specifications, visit the official product page

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution2688 × 1520
Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time1/3 s to 1/100,000 s
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°

4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°

6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
Lens MountM16
Iris TypeFixed
ApertureF1.0
Depth of Field
2.8 mm, 2.5 m to ∞

4 mm, 3.5 m to ∞

6 mm, 7.5 m to ∞

DORI
DORI
2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 6 m

4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes

Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream

Audio
Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering-U: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchAuto, Schedule
Wide Dynamic Range (WDR)130 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone-U: Yes
Reset KeyYes

Event
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Scene change detection
LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email

Deep Learning Function
Face CaptureYes

General
Power
12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.13 A, max. 7.6 W
DimensionØ138.3 mm × 125.2 mm (Ø5.4" × 4.9")
Package Dimension170 mm × 170 mm × 150 mm (7" × 7" × 5.9")
WeightApprox. 750 g (1.7 lb.)
With Package WeightApprox. 1055 g (2.3 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2016);

KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)
