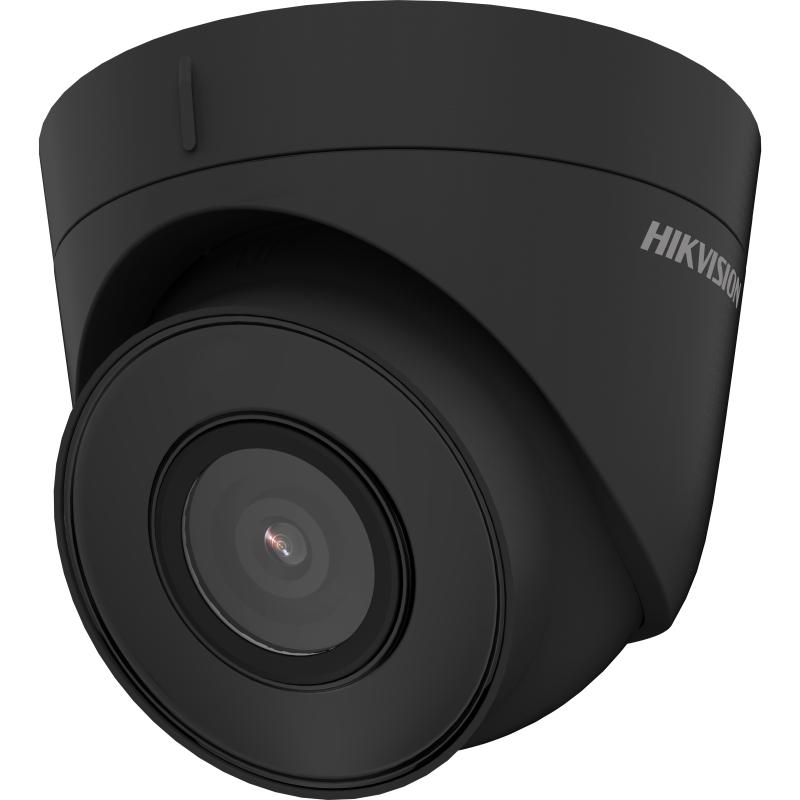

DS-2CD1343G2-I(UF) 4 MP MD 2.0 Fixed Turret Network Camera

DS-2CD1343G2-I(UF) 4 MP MD 2.0 Fixed Turret Network Camera

Name: DS-2CD1343G2-I(UF) 4 MP MD 2.0 Fixed Turret Network Camera
SKU: DS- 2CD1343G2-I (4MP Dome)
Availability: InStock

Model: DS- 2CD1343G2-I (4MP Dome)

SKU: DS- 2CD1343G2-I (4MP Dome)

~~₨9,000.00~~ ₨8,887.00

Add to wishlist Compare

Order on WhatsApp

Other people want this. 80 people have this in their carts right now.

SKU: DS- 2CD1343G2-I (4MP Dome) Categories: ALL TECH ACCESSORIES, Camera & Securities, CC CAMERAS, IP Cameras, SECURITY Tag: DS- 2CD1343G2-I (4MP Dome)

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Water and dust resistant (IP67)

Reviews

There are no reviews yet.

Be the first to review “DS-2CD1343G2-I(UF) 4 MP MD 2.0 Fixed Turret Network Camera”

Description

DS-2CD1343G2-I(UF) 4 MP MD 2.0 Fixed Turret Network Camera

The DS-2CD1343G2-I(UF) is a high-performance 4 MP Fixed Turret Network Camera, engineered for clear imaging, smart detection, and reliable outdoor surveillance. Featuring Motion Detection 2.0 and EXIR 2.0 technology, this camera ensures 24/7 security with efficiency and precision.

Why Choose DS-2CD1343G2-I(UF) for Your Surveillance System?

High-Quality 4 MP Resolution

Capture crisp and detailed images with 2560 × 1440 resolution, ensuring excellent visual clarity across all scenes.

Smart Human and Vehicle Detection

Reduce false alarms with built-in Motion Detection 2.0 that accurately identifies human and vehicle targets using deep learning algorithms.

Advanced 120 dB Wide Dynamic Range (WDR)

Maintain clear visibility in high-contrast environments, such as entrances with strong backlighting.

Night Vision Powered by EXIR 2.0

Infrared capabilities extend up to 30 meters, providing clear imaging even in complete darkness.

Optional Built-In Microphone

The -U model offers integrated audio to complement video recordings, enabling real-time audio surveillance.

Rugged and Weatherproof Design

Certified with an IP67 rating, this camera withstands rain, dust, and tough outdoor conditions.

H.265+ Compression Technology

Save storage and bandwidth with advanced compression that reduces file sizes while maintaining image quality.

On-Board Storage Support (Optional)

Supports up to 256 GB of SD card storage (model-dependent), ideal for backup or standalone setups.

Technical Specifications

Feature	Details
Image Sensor	1/3” CMOS
Lens	2.8mm fixed
Min. Illumination	0.01 lux @ F2.0
IR Range	Up to 30 meters
Compression Format	H.265+/H.264
Max Video Resolution	2560 × 1440 @ 25/30 fps
Dynamic Range	120 dB WDR
Noise Reduction	3D DNR
Audio	Built-in mic (optional)
Protection	IP67
ONVIF Compatibility	Yes
Power Supply	12 VDC

Conclusion

Whether you’re securing a residential property, commercial building, or industrial facility, the DS-2CD1343G2-I(UF) provides dependable, high-resolution imaging with smart features designed to meet modern security demands.

For pricing, installation guidance, or more product options, contact us .

Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2560 × 1440
Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°

4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
Lens MountM12
Iris TypeFixed
ApertureF2.0

DORI
DORI
2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m

4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream
50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Region of Interest (ROI)1 fixed region for main stream

Audio
Audio Type-U: Mono sound
Environment Noise Filtering-U: Yes
Audio Sampling Rate-U: 8 kHz/16 kHz
Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host
Up to 32 users

3 levels: administrator, operator, and user
ClientiVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11

Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask4 programmable polygon privacy masks

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone-U: Yes
Reset Key-F: Yes

Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
MaterialMetal & Plastic
DimensionØ110 mm × 85.3 mm (Ø4.3" × 3.4")
Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight-I: Approx. 330 g (0.7 lb.); -IUF: Approx. 340 g (0.7 lb.)
With Package Weight-I: Approx. 550 g (1.2 lb.); -IUF: Approx. 560 g (1.2 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC
FCC: 47 CFR Part 15, Subpart B

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

RCM: AS/NZS CISPR 32: 2015

IC: ICES-003: Issue 7

KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1

CB: IEC 62368-1: 2014+A11

CE-LVD: EN 62368-1: 2014/A11: 2017

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU

WEEE: 2012/19/EU

Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013
